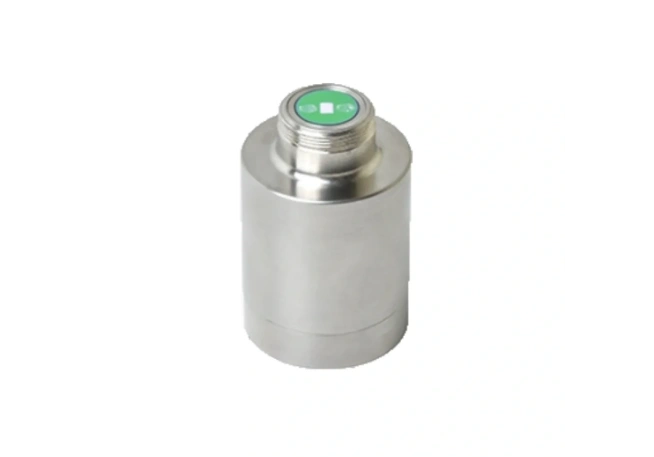

Micronir Pat-U

The included MicroNIR Pro software suite has features for data acquisition, calibration and method development, user management, and real-time prediction. MicroNIR Pro can build and apply complete chemometric models using regression and classification algorithms including PLS, Moving Block, SMV, and PCA analyses. Batch mode predictions on stored data are also supported.

Options include an enhanced OPC interface for integration with process control systems and prediction engine add-ins for Camo Unscrambler, Eigenvector Research Solo Predictor and Sartorius SIMCA chemometric software.

VIAVI offers multiple options for interfacing the PAT-U to process equipment via standard sanitary flanges and weld-in flanges with a sapphire process window that separates the MicroNIR from the material being analyzed.

The standard mount includes a weld in base flange, a 2” sanitary (hygienic) flange mount, a sapphire window, and a retaining ring with O-rings. The base flange is welded into a hole cut in the specific process equipment. Next, the window, the sanitary flange mount, and retaining ring are assembled. The PAT-U with a modifiable collet then secures against a sanitary flange and the window using a standard tri-clover clamp (or C-clamp). All pieces can be dismantled for easy cleaning and maintenance.

The threaded mount allows a user to weld a mount into the process equipment and then link the PAT-U using the threaded tip of the spectrometer. This mount also has a removable window to allow easy cleaning and maintenance.
