Micronir Pat-UX
Rugged and safe in hazardous locations, the MicroNIR PAT-Ux process spectrometer is designed for real-time process monitoring in pharmaceutical, industrial and food process analytical technology (PAT) applications.
The PAT-Ux is the hazardous location version of the popular VIAVI PAT-U miniature process spectrometer. Safe in the presence of flammable gases, vapors, fibers, or dust, the PAT-Ux enables moving a process directly to production in a hazardous location using chemometric models and processes developed in the ordinary location of a laboratory. The PAT-Ux attaches readily to fixed processing equipment of all types and sizes, with the performance and stability to support truly efficient – and scalable – manufacturing.
Benefits
- Non-invasive, real-time NIR analysis for hazardous manufacturing locations
- Safe in the presence of flammable gases, vapors, fibers, or dust
- ATEX, NEC, and IECEx certified
- Interoperable with all MicroNIR instruments
- Maintenance-free with no moving parts
- Robust, reliable, repeatable
- Washable, IP65 & IP67 rated instrument head
- Easy Ethernet and power connections
Applications
- Pharmaceutical Manufacturing
- Fluid bed drying
- High shear mixing
- Granulation
- Food and Feed Manufacturing
- Grain & flour processing
- Moisture, protein, fat, and sugar analysis
- Industrial Processing
- Explosives manufacturing
- Polymers & petrochemicals
1/3
TECHNICAL SPECS

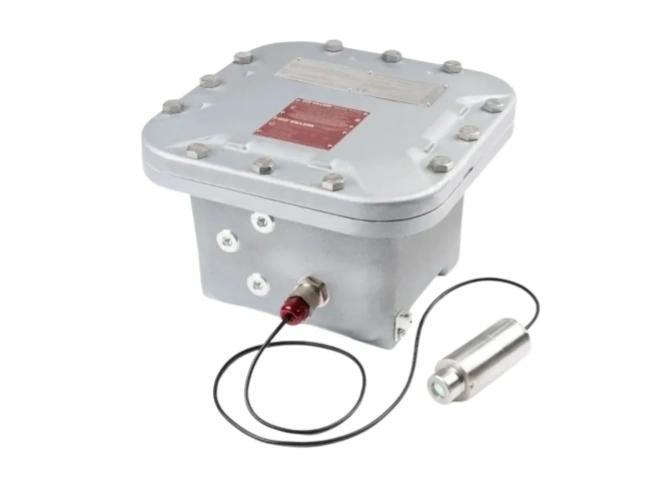

The MicroNIR PAT-Ux for hazardous locations consists of two main parts: The spectrometer instrument head and the barrier box. The instrument head is identical to the well-established MicroNIR PAT-U with the addition of a wiring adapter for hazardous locations. The barrier box houses the interface electronics in a heavy, cast aluminum enclosure. The barrier box is hardwired to the instrument head and has user-available ports for connections to Ethernet, 24VDC power, and optional external trigger. The barrier box comes with mounting brackets for attachment to process equipment.
Feature
Feature
Feature
Instrument Head
Barrier Box
Connecting cable
User connections
Certifications
Value
Feature
Feature
Ø 44.6mm x 112mm
313 x 313 x 206 mm (12.3 x 12.3 x 8.1”) 17.5 kg (38.6 lbs.)
1.25m (length)
Ethernet 24VDC power External trigger (optional)
Class I Div. 2 Zone 1 & 2 Class II Div. 2 Zone 21 & 22 Class I Groups C & D Class II Groups E, F, and G
Download Data Sheet
Want to know more? Download our brochure at the link below!
