Micronir Pat-W

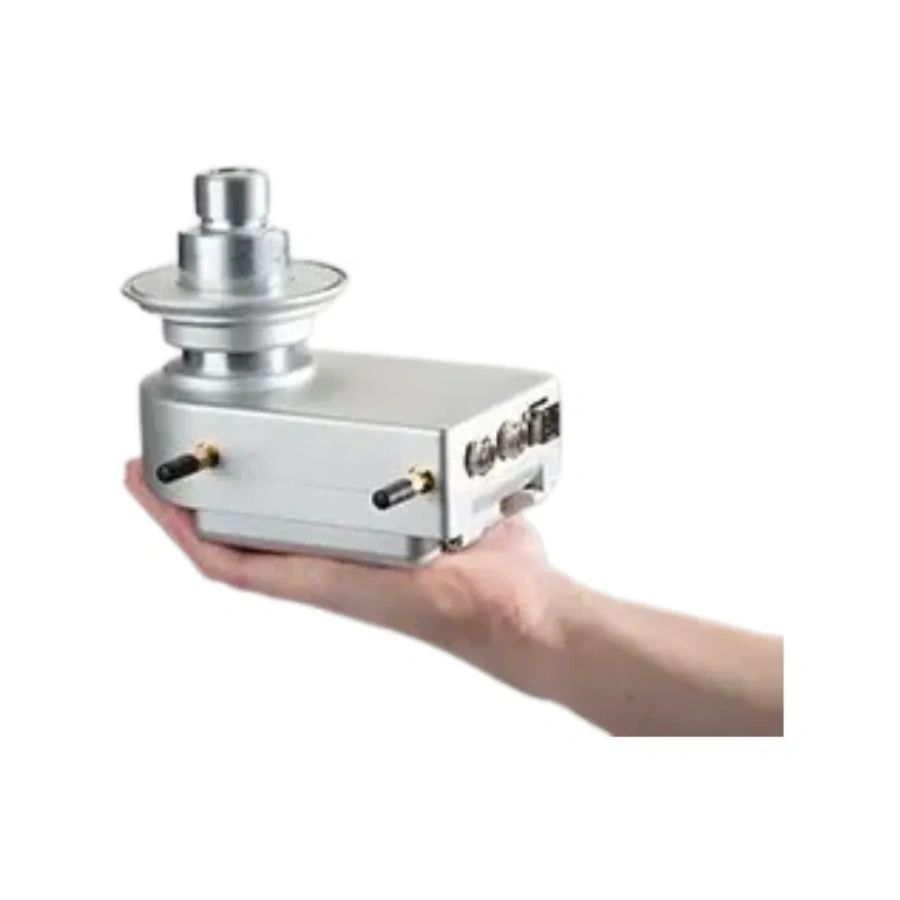

The MicroNIR™ PAT-W is a rugged, battery-powered NIR spectrometer equipped with WiFi data communication and designed for use on rotating blenders and stationary process equipment.
The MicroNIR PAT-W spectrometer is a fit-for-purpose near-infrared (NIR) analyzer for quality-by-design (QbD) manufacturing. The spectrometer is a sturdy, scalable, next-generation system for real-time process monitoring in blend homogeneity, content uniformity, loss on drying, roller compaction, and similar process analytical technology (PAT) applications. With the well-established Viavi linear variable filter (LVF) technology, the PAT-W has the smallest form factor among commercial process monitoring instruments in a fit-for-purpose design. This makes it ideal for use with processing equipment of a variety of sizes, with the stability and performance to facilitate efficient and smart manufacturing.
The user-friendly MicroNIR PAT-W was engineered to handle today's challenging GMP-regulated environments yet requires minimal system maintenance. There are no expensive fiber optic cables or moving components, enabling superior instrument stability and performance in challenging process environments. Its stainless steel/brushed aluminum case is water and dust resistant according to IP65/67 standards.
Key Features
- Non-destructive, non-invasive, and real-time near-infrared analysis
- User-selectable Ethernet or Wi-Fi for data communication and system control
- User-replaceable, rechargeable Li-ion battery with over eight hours of uninterrupted run time
- Integrated PC enables fast and secure store and forward of spectral data
- Incorporated multi-axis orientational triggering
- Trigger options for a variety of applications: push button, OPC and external photosensor
- Real-time moving block standard deviation (MBSD) analysis for endpoint determination in granulation, blending, drying, and coating processes
- Washable, IP65/67-rated enclosure
Applications
Pharmaceutical Manufacturing
- Blend & content uniformity
- Fluid bed drying
- Granulation
Food and Feed Manufacturing
- Moisture content
- Nutritional assay
- Protein, fat & fiber
Industrial Processing
- Polymers
- Reaction monitoring
- Petrochemicals
Standard Accessories
- Two applicators with sapphire windows, AR-coated on one side for maximum light throughput
- Small applicator for flexible operation and for reaching samples in confined spaces easily
- Large applicator for soft material measurement such as fiber, clothes and vegetation
- Protected white reference with sapphire window
- Matching grooves on the applicators and reference for easy alignment in the field
- Protected window and aluminum enclosure for use in the field and for easy cleaning
- Rugged carrying case including space for PC and tablet
- USB cable for charging and data connection to PC
